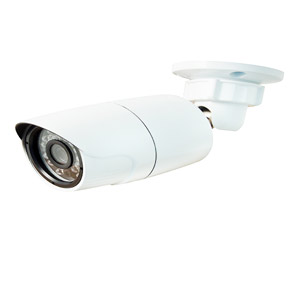

HDCVI 1080p/2MP Small Bullet Camera, 1/2.7″ CMOS Fixed 3.6mm, 24 x IR LED @ 82ft, IP66, OSD, AGC, IR-Cut-Filter, 12vDC, White

Image Device 1/2.7″ OV2710 CMOS
Megapixels 2MP
Lens 3.6mm
Effective Pixels 1920(H) x 1080(V)
Horizontal Resolution 1080p
Minimum Illumination 0 Lux (with IR LED On)
S/N Ratio More than 48dB
Body Color White
Day and Night Yes
Electronic Shutter Auto, 1/50~1/50,000
Gamma Characteristic 0.45
White Balance Auto
IR LED 24 Units, up to 82ft
Sync. Mode Internal, Negative sync.
Video Output HDCVI, CVBS (1Vpp, 75Ω)
Automatic Gain Control Auto
Power Source 12VDC±10%
Power Consumption 300mA
Operating Temperature  +14°F ~ +122°F (-10°C ~ +50°C)
Water Resistance IP66
Dimensions 6.69″(L) x 2.36″(W) x 2.36″(H)
Weight 0.77lb
Warranty 2 Year
