JSB-IPC2MPBV

Date: June 18, 2014 Category:

hdcam

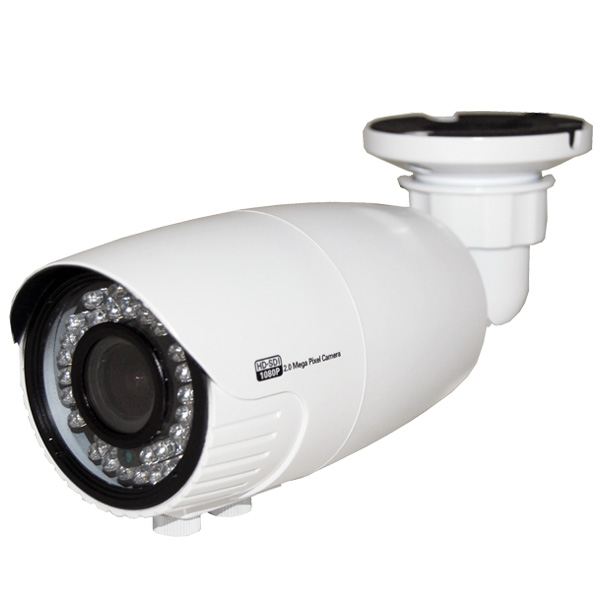

HD-SDI Bullet 2 Megapixels – 1080P HD / 42IR LED / 2.8-12mm LENS

High-Definition Serial Digital Interface (HD-SDI) is a family of video interfaces used for broadcast-grade
video. It’s used for transmission of uncompressed, unencrypted digital video signals over point-to-point
coaxial cable links for video surveillance applications. HD-SDI protocol can transmit 720p or 1080p video.

Features

  • Full HD (1920×1080) image via HD-SDI interface with conventional coaxial cable
  • Six times the resolution of traditional analog cameras
  • Defog: Defog Technology enhances visibility in real-time fog, smoke, low light, and dust conditions
  • Smart DNR technology – reduces noise efficiently in low light conditions
  • Weather Proof – IP66



In the Box

  • Camera
  • User Manual
  • OSD Manual
  • Mounting Screws / Anchors
  • Housing Allen Wrench



Type HD-SDI Bullet Camera
Image Device 1/3″ 2 Megapixel CMOS
Megapixels 2
Scanning System Progressive Scan
Lens  2.8 – 12mm
Effective Pixels  1944(H) x 1092(V)
Minimum Illumination 0 Lux with IR on
Electronic Shutter Auto
White Balance AWB
IR LED 70 units up to 140ft
Video Output Level HD-SDI / 1.0 Vp-p composite, 75Ω
Video Output Mode 1080p(1920×1080) 30fps
2D/3D – Noise Reduction 2DNR / 3DNR / Smart NR
Automatic Gain Control Low / Middle / High
Day and Night Yes
Digital Zoom Yes
DWDR  Yes
OSD Yes
Sens-up  Yes
Back Light Compensation Yes
Power Source DC12V 400mA
Power Consumption Max 1A (at 12v DC)
Housing IP66
Operating Temperature  -20C – +50C
Dimensions  4.1(w) x 5.9(H) x 4.3(D)
Weight  3lbs
Warranty  2 Year Warranty
