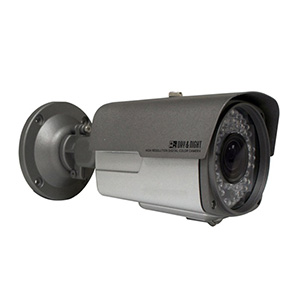

HD-SDI Bullet 2 Megapixels – 1920×1080 / 70IR LED / DWDR / OSD / DNR / Dual voltage
High-Definition Serial Digital Interface (HD-SDI) is a family of video interfaces used for broadcast-grade
video. It’s used for transmission of uncompressed, unencrypted digital video signals over point-to-point
coaxial cable links for video surveillance applications. HD-SDI protocol can transmit 720p or 1080p video.
Features
- Full HD (1920×1080) image via HD-SDI interface with conventional coaxial cable
- Six times the resolution of traditional analog cameras
- Defog: Defog Technology enhances visibility in real-time fog, smoke, low light, and dust conditions
- Smart DNR technology – reduces noise efficiently in low light conditions
- Max 64x Digital Zoom
- Weather Proof – IP66
- On screen Display
- Digital Wide Dynamic Range
In the Box
- Camera
- Screws
- RCA video cable tester
- Housing Visor
- Manual
| Type | HD-SDI Bullet Camera |
| Image Device | 1/3″ 2 Megapixel CMOS |
| Megapixels | 2 |
| Scanning System | Progressive Scan |
| Lens | 2.8 – 12mm |
| Effective Pixels | 1944(H) x 1028(V) |
| Minimum Illumination | 1.0LUX(color), .5LUX(B/W), .02 LUX(sens-up x 60) |
| Electronic Shutter | 1/30(1/25) ~ 1/50,000sec |
| White Balance | AWB / AWC-SET / Manual / Indoor / Outdoor |
| IR LED | 70 units up to 140ft |
| Video Output Level | HD-SDI / 1.0 Vp-p composite, 75Ω |
| Video Output Mode | 1080p(1920×1080) 30fps |
| 2D/3D – Noise Reduction | 2DNR / 3DNR / Smart NR |
| Automatic Gain Control | Low / Middle / High |
| Day and Night | Yes |
| Digital Zoom | Yes |
| DWDR | Yes |
| OSD | Yes |
| Sens-up | Yes |
| Back Light Compensation | Yes |
| Power Source | Dual Voltage, DC12V/AC 24V |
| Power Consumption | Max 1A (at 12v DC) |
| Housing | IP66 |
| Operating Temperature | -10C – +50C |
| Dimensions | 3.4″ x 4.01″ x 5.17″ |
| Weight | 2.2lbs |
| Warranty | 2 Year Warranty |
