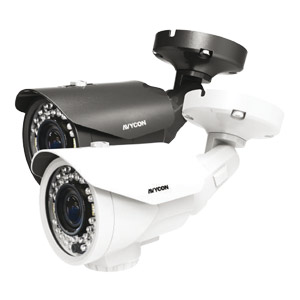

HD 1080P, HD-TVI, IR Bullet, 2.1 megapixel, Sony EXMORE CMOS, Full HD 1080P, True Wide Dynamic Range, WDR 120db, 2.8 ~12mm DC Auto Iris Varifocal lens (ICR), 48 IR LEDs
- TVI SOLUTION
- 1/2.9″ 2.1MEGAPIXEL SONY EXMOR CMOS
- FULL HD 1080P
- TRUE WIDE DYNAMIC RANGE (WDR 120dB)
- 2.8~12mm DC AUTO IRIS VARIFOCAL LENS (ICR)
- 48 IR LEDs
- 0.02Lux (SENS-UP X32)
- 3DNR (DIGITAL NOISE REDUCTION)
- ICR FILTER CHANGE FUNCTION
- BUILT IN OSD CONTROLLER & 2nd BNC CONNECTOR
- 5-AXIS BRACKET
- DC 12V / AC 24V DUAL VOLTAGE (OPTION)
- ALSO AVAILABLE IN WHITE: AVC-BT92VT-W
| IMAGE SENSOR | 1/2.9″ 2.1MEGAPIXEL SONY EXMOR CMOS |
| EFFECTIVE PIXEL | 1920 (H) × 1080 (V) = 2.07M |
| SCANNING SYSTEM | PROGRESSIVE |
| SYNCHRONIZATION | INTERNAL |
| HORIZONTAL RESOLUTION | 1080P HD |
| VIDEO OUTPUT |
TVI, CVBS : 1.0VPP, 75Ω COMPOSITE |
| S/N (Y SIGNAL) | MORE THAN 52dB |
| MIN. ILLUMINATION | 0.02Lux (SENS-UP X32) |
| IRIS ADJUSTMENT | ALC / ELC |
| LENS | 2.8~12mm DC AUTO IRIS VARIFOCAL LENS (ICR) |
| ELECTRONIC SHUTTER | NTSC: AUTO (1/30~1/60,000) PAL: AUTO (1/25~1/60,000) FLK |
| OSD LANGUAGE | ENG / CHN / CHN[S] / JPN / KOR |
| BACKLIGHT COMPENSATION | OFF / HLC / BLC / WDR |
| DAY & NIGHT | COLOR / BW / EXTERN / AUTO |
| D-WDR | OFF / LOW / MIDDLE / HIGH |
| AUTO GAIN CONTROL | LEVEL (0~20) ADJUSTMENT |
| WHITE BALANCE | AUTO / AUTODEXT / PRESET / MANUAL |
| PRIVACY MASKING | ON / OFF (PROGRAMMABLE 16 ZONES) |
| DNR | OFF / LOW / MIDDLE / HIGH |
| SMART IR | ANTI-SET (0~20) ADJUSTMENT |
| LSC | ON / OFF |
| GAMMA | 0.45 / 0.5 / 0.55 / 0.6 / 0.65 |
| DEFOG | ON / OFF |
| DIGITAL ZOOM | ON / OFF (X1 ~ X8.0) |
| DEAD PIXEL COMPENSATION | LIVE DPC / DPC SET |
| SENS-UP | OFF / X2~X32 |
| MOTION | 4 AREA |
| DIGITAL EFFECT | OFF / V-FLIP / MIRROR / ROTATE |
| COMMUNICATION | RS485 (OPTION) |
| IR LED | 48 PCS |
| INPUT VOLTAGE | DC 12V / AC 24V DUAL VOLTAGE (OPTION) |
| POWER CONSUMPTION | NTSC: DC IR OFF : 210mA (±10%) / DC IR ON : 550mA (MAX) PAL: AC IR OFF : 200mA (±10%) / AC IR ON : 450mA (MAX) |
| OPERATING TEMP. / HUM. | -30°C ~ 50°C (-22°F ~ 122°F) / MAX 90% RH |
| STORAGE TEMP. / HUM. | -20°C~ +60°C / MAX 90% RH |
